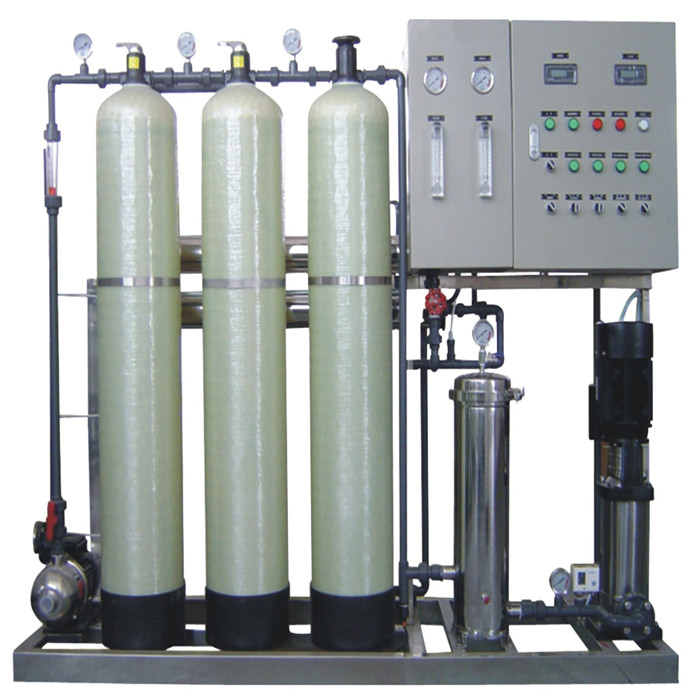

Three-Tank Water Treatment System, Producing 800L Of Water Per Hour...
The three-tank water treatment system is a highly efficient water treatment equipment with the following features and functions:
1. Product Introduction:
• The three-tank water treatment system consists of three standard high-speed filtration units, which can effectively remove particulate matter and reduce turbidity through internal water distributors and water collectors, using different media.
• The system can be equipped with specific filter media, such as activated carbon, anthracite, etc., to adsorb and remove corresponding organic matter and ions
• The system is modularly set up, with a small footprint, less piping, less investment, and has the characteristics of high filtration rate and low pressure loss.
2. Technical parameters:
• Various structural forms, including single tank, two tanks in parallel, three tanks in parallel, etc.
• The filter unit has a variety of specifications from 16 inches (400mm) to 96 inches (2400mm), and can be installed in different ways.
3. Performance characteristics:
• High filtration rate and low pressure loss solve the problems of slow filtration rate and small flow rate of ordinary mechanical media filters. • The backwash water source can be selected from the system, water tower or external water source, and can be switched automatically.
• Multiple models of units are available, and multiple units can be combined, and the processing flow can be expanded arbitrarily.
4. Working principle:
• When the system is in the filtering state, pressurized water flows into the water distribution system from the filter tank inlet and reaches the filter layer evenly. When the water flows through the filter layer, the suspended matter is intercepted by the filter.
• As impurities continue to accumulate in the filter layer, the pressure loss increases. When the pressure difference increases to the set value, the system automatically switches to the backwash state to flush and remove pollutants and discharge them from the filter system.
5. Application field:
• The three-tank water treatment system is mainly used for the filtration of circulating water, water supply and wastewater in the industrial field.
6. Customer case:
• The system has been widely used in many fields. For specific cases, please refer to the relevant product introduction and application field. In summary, the three-tank water treatment system plays an important role in the field of water treatment with its high efficiency, modularization and automation.
........................................................................................................................................................................................................................................
........................................................................................................................................................................................................................................
Note: Due to product specificity need to buy the pro please contact our customer service, customer service will be based on the pro's water consumption and water quality problems to recommend the right products to the pro, in order to avoid unnecessary future trouble please do not blindly buy equipment, such as the need for specific details of the specifications and parameters or picture trouble pro contact customer service, we will answer the pro's questions, thank you for the pro's support of the net environmental protection, thanks!
